4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator

Brand Name : Colable

Model Number : COL5502N

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T(Wire Transfer), Western Union etc

Supply Ability : 500sets per Month

Delivery Time : 2-5 working days

Packaging Details : Standard Export Carton with foam

Product Name : IP to DVB-S2 Modulator

Input : 4*ASI+1*IP (100M)

Output : DVB-S/S2 RF

RF range : 950-2150 Mhz, 1Khz stepping

Constellation : QPSK, 8PSK, 16APSK, 32APSK

Features : Biss Descrambling

Management : SNMP/Web-server NMS

Applications : Digital Satellite TV Headend System

Contact Now

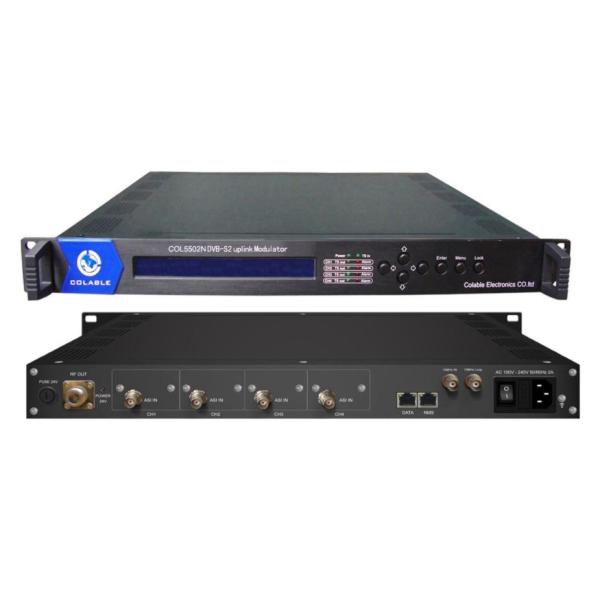

4 ASI & IP to DVB-S2 Modulator
Biss Descrambling APSK QPSK Modulatorb Model:COL5502N

4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator

Outline

COL5502N dvb-s2 modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output.
BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.
With its high cost-effective design, COL5502N DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.


Features

  • Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
  • 4 ASI inputs supporting hot backup (3 for backup)
  • Support IP (100M) signal input
  • QPSK, 8PSK, 16APSK, 32APSK Constellations
  • Constant temperature crystal oscillator, as high as 0.1ppm stability
  • Support coupling 10Mhz clock output through RF output port
  • Support 24V power output through RF output port
  • Support BISS scrambling(UP to 80 Mbps)
  • Support local and remote control with SNMP or Web-server NMS
  • Support SFN TS (with MIP or IIP) transmission
  • Output frequency range: 950~2150MHz, 10KHz stepping


Principle Chart
4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator

Specifications for ASI IP to DVB-S2 Modulator

ASI Input Supporting both188/204 Byte Packet TS Input
4 ASI Inputs, Supporting Hot Backup
Connector: BNC, Impedance 75Ω
IP Input1*IP Input (Rj45, 100M TS Over UDP)
SFN outputMIP or IIP
10MHz Input 1*10Mhz Input (BNC Interface)
RF Output RF Range: 950 ~ 2150 MHz, 10KHz stepping
Output Level Attenuation:-10.0 dBm~-41.5 dBm,0.5dB Stepping
MER≥36dB
Connector: N type, impedance 50Ω

Channel Coding
and Modulation

StandardDVB-SDVB-S2
Outer codingRS CodingBCH Coding
Inner codingConvolutionLDPC Coding
ConstellationQPSKQPSK,8PSK, 16APSK,32APSK
FEC/ Convolution Rate1/2, 2/3, 3/4, 5/6, 7/8

QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Roll-off Factor0.2, 0.25, 0.350.2, 0.25, 0.35
Symbol Rate0.5~45Msps

0.5~40Msps (32APSK);

0.5~45 Msps (16APSK/8PSK/QPSK)

BISS ScrambleMode 0, mode 1, mode E
SystemSNMP/Web-server NMS
Language: English
Ethernet software upgrade
24V power output through RF output port
Miscellaneous Dimension482mm×410mm×44mm
Weight4.3 KG
Temperature0~45℃(operation), -20~80℃ (storage)
Power100-240VAC±10%,50Hz-60Hz
Consumption25W



Packing for IP to DVB S2 Modulator


4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator



Digital CATV & IPTV System


4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator



Certificates

4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator



Exhibition

4 ASI & IP To DVB S2 Modulator , Biss Descrambling APSK QPSK Modulator

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
